Paramount PCC 2000 In-floor Cleaning System

The PCC 2000 is a programmable in-floor cleaning and circulation system that cleans your swimming pool automatically. Each in-floor cleaning system is engineered using state-of-the-art C.A.D. technology and can be designed for concrete pools and spas of any shape or size.

The PCC 2000 fittings come in 8 colours to complement the swimming pool’s interior and are virtually undetectable when not in use. You can even swim whilst the cleaning system is operating, because there are no hoses or obstacles.

Aloha Pools Pty Ltd is an authorized and trained installer of the PCC 2000 in-floor cleaning system. They have installed over 500 in-floor cleaning systems, including the one in the ornamental reflection pond at Old Parliament House in Canberra. This PCC 2000 is reportedly the largest in-floor cleaning installation in the world.

How the PCC 2000 In-floor Cleaning System Works

Pop-up nozzles built into the floor of the swimming pool use high pressure streams of water to push dirt, sand, leaves and debris from every corner of the pool toward the MDX drain, where it is removed into a collection basket or canister for ease of disposal.

The in-floor cleaning nozzles can be installed in steps, seats and play areas, and in spas and fountains.

The PCC 2000 in-floor cleaning system is covered by a limited Lifetime Warranty. The pop-up nozzles and controlling water valve are modular and virtually maintenance free.

Breakdown Of A Self Cleaning Pool

1. Rotating pop-up cleaning jets are placed in floors, walls, steps, benched and even spas to clean the entire pool. These cleaning jets work together to sweep debris toward the patented debris collection zone.

2. The MDX-R3 VGB compliant safety drain continually collects large debris directed to it from the patented debris collection zone and delivers it to the debris containment canister.

3. The debris containment canister works in conjunction with MDX-R3 drain, it holds large debris for easy deck side removal. Additional safety is achieved with the MVFUSE magnetic vacuum release systems (SVRS).

4. The SDX VGB high flow safety drain works together with the MDX-R3 to offer an additional layer of anti-entrapment protection. SDX also handles additional suction requirements.

5. The strategically placed downjet wall returns, help to clean the deep end area walls and slopes enhancing the system’s cleaning and circulation.

6. The automatic watervalve functions as the brain if the system and direct a powerful flow of water to each set of cleaning jets. The watervalve requires no routine maintenance, and is also 100% pressure safe.

Additional Benefits Beyond The Cleaning

cert-sealgraphic2

  • Enjoy cleaner, healthier water.
  • No poorly-circulated algae-prone areas.
  • Eliminates cold spots for more comfortable swimming.
  • Saves chemicals for the life of the pool.
  • Saves energy costs for the life of the pool.
  • Better for the environment.
  • Independently proven to save you money for the life of your pool.

Reduce Maintenance Costs

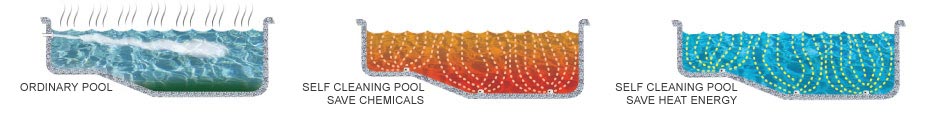

Both heat and chemicals escape the water more rapidly at the surface of a swimming pool. While it is impossible to eliminate this, the effects can be greatly reduced by returning heated, chemically treated water to the floor of the swimming pool. When the heat and chemicals are introduced at the bottom of the pool they get thoroughly mixed long before they reach the surface. This results in lower heat and chemical losses and lower costs over the lifetime of the pool.

Info from Paramount Website

PCC 2000 is a cleaning and circulation system custom engineered specifically for the pool you create. It will clean any pool you design with pop-up spray nozzles built into your pool during construction. PCC 2000 will clean steps, benches, fountains, walls, even your spa, any way you design it.

More than a simple cleaning system, PCC 2000 is a better way to build your swimming pool. The pop-up nozzles push debris from every corner of your pool toward the Patented Collection Zone, an area stretching across the deepest part of your pool where debris is then directed to the active main drain. From there, pool waste travels to the optional debris containment canister designed for convenient deck-side access.

PCC 2000’s pop-up nozzles come in 8 colours to complement your pool’s interior. They are virtually undetectable when not in use. This is a great improvement on the bulky robotic cleaners and floating hoses of yesterday. PCC 2000 allows for unlimited creative freedom during pool design because its patented collection system is engineered using state-of-the-art C.A.D. technology for each unique setting. PCC 2000’s cleaning system is not only safe for any pool surface, but also saves money in heating and chemicals over the lifetime of the pool.

Paramount’s PCC 2000 enhances your pool invisibly; it keeps your backyard pool clean, automatically without your time and labour.

The Permanent Cleaning Solution

The PCC 2000 pop-up nozzles come with a Limited Lifetime Warranty so you won’t have to budget for a new pool cleaning system every few years. Our pop-up nozzles will never touch your pool’s finish and therefore will not leave any marks or damage the surface. The pop-up nozzles and controlling water valve are modular and virtually maintenance free.

The water valve controls the PCC 2000 system, allowing for the use of cleaning zones which efficiently clean the entire pool. PCC 2000 is a systematic approach to permanent pool cleaning and circulation that will save you time and money through reduced chemical and heating costs. Here’s how!

Reduces Your Maintenance Costs!

Your pools environment will have a large impact on maintenance costs, and the PCC 2000 can really make a difference. Both heat and chemicals escape the water more rapidly at the surface of the pool. While it is impossible to eliminate that fact, the effects can be greatly reduced by returning heated, chemically treated water to the floor of the pool. When the heat and chemicals are introduced deep under water, they get thoroughly mixed long before they reach the surface of the water. The results are lower heat and chemical losses and lower costs for you over the lifetime of the pool.

When dirt, sand, leaves, and debris fall into your swimming pool, they usually end up sinking to the bottom. The Paramount Debris Containment Canister provides a convenient place to collect debris for easy removal, right from the deck of the pool! With a capacity 400% larger than your average pump basket, you can dispose of the contained debris easier and less often.

Conventional pools accumulate debris quickly. Pools equipped with the Paramount Canister are cleaner pools with debris held out of sight and ready for easy disposal. The Paramount Canister connects to the suction side of the pump, using the power of the pump without robbing performance and allowing your pool builder to install a smaller, more economical pump.
